S Series Integrated Ceiling Exhaust Fan

A clean panel for considered spaces.

A flat panel and ducted exhaust design for integrated ceilings. The illustrated model includes a gravity-operated backdraft damper.

Clean panelPlastic housingGravity damper

Discuss product selection View specifications

PRODUCT FEATURES

Details designed around use.

Clean panel

A flat surface coordinates with integrated ceilings.

Plastic housing

The housing is injection molded as one piece.

Gravity damper

The illustrated backdraft damper is located at the outlet.

DESIGN & OPERATION

From operating principles to everyday use.

Four-sided ceiling intake

Air enters around the integrated ceiling panel and is exhausted by the fan. Check ceiling module size, mounting opening and duct connection.

Routine cleaning

The ABS panel and housing suit ceiling installation. Check dust on the panel, outlets and damper. Disconnect power before removal or cleaning.

INSIDE THE PRODUCT

Explore the construction and functions.

S Series Integrated Ceiling Exhaust Fan: components and functions — Components and construction

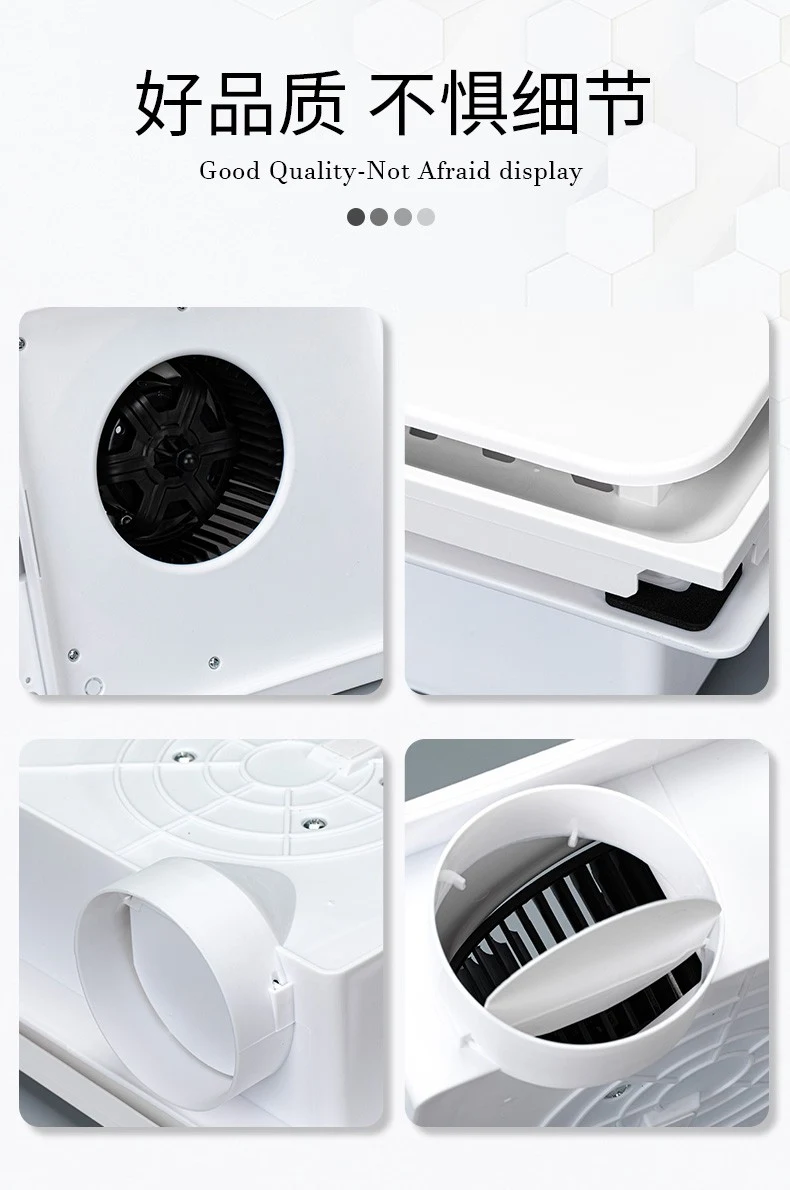

S Series Integrated Ceiling Exhaust FanPanel, air outlet and internal components — Panel, air outlet and internal components

SPECIFICATIONS

Specifications at a glance.

Representative model specifications
Model	BPT10-23S
Airflow	250 m³/h
Static pressure	150 Pa
Power	30 W
Connection diameter	100 mm

Specifications follow the corresponding product documents. Do not combine figures from different models. Confirm operating conditions and the supplied configuration.

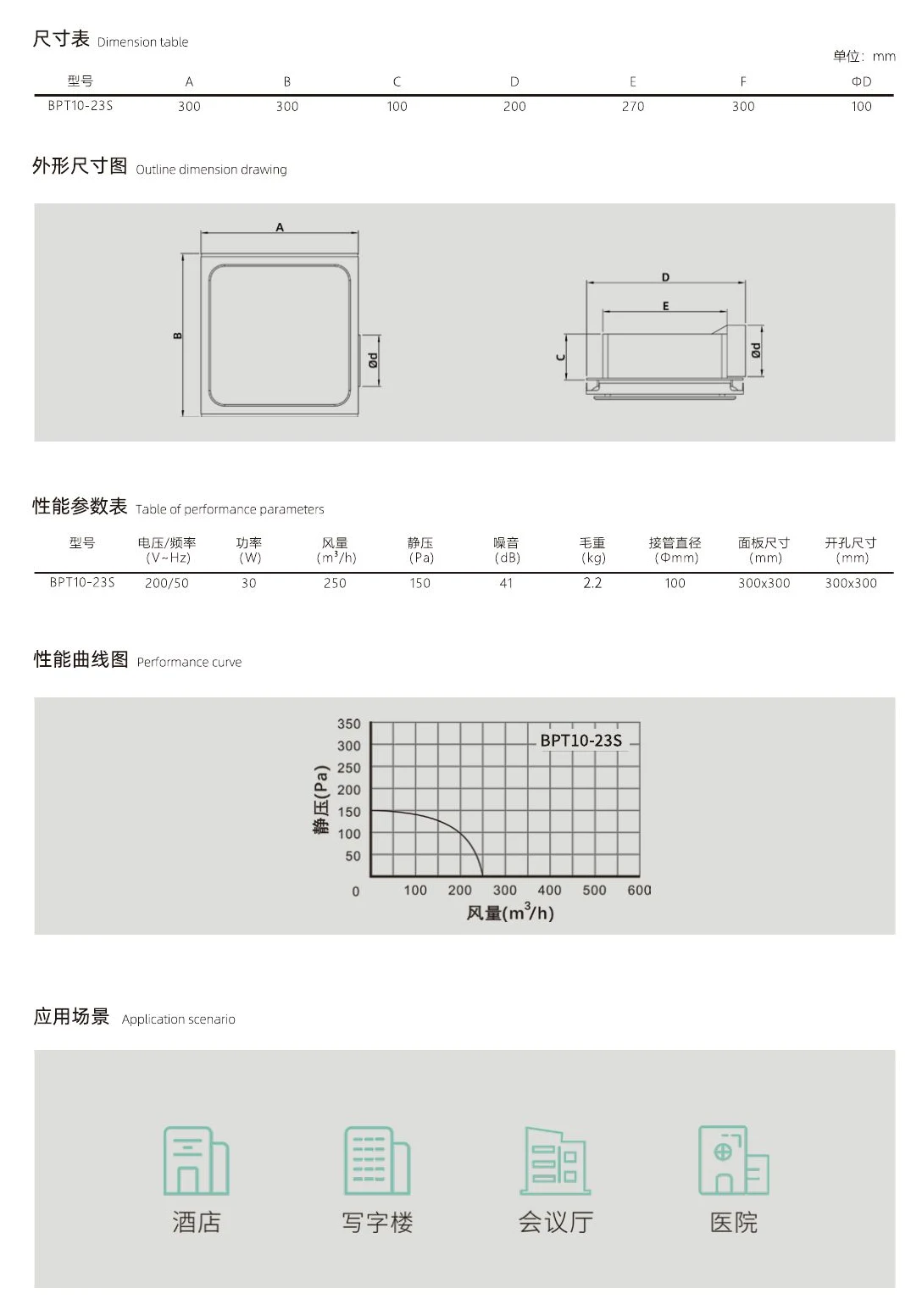

S Series Integrated Ceiling Exhaust Fan: dimensions, construction and performance charts — Dimensions and specifications - click to enlarge

Exhaust Ventilation — application illustration

APPLICATION & SELECTION

Small spaces deserve good ventilation.

Ventilators, ceiling exhaust fans and louvered fans for ceiling and window installations.

Before selecting a product

Ceiling or window type, mounting opening, duct connection diameter and exhaust route.

Application illustration, not a record of a completed project.

Discuss your project

PRODUCT QUESTIONS

Questions about this product

What are the key features of the S Series Integrated Ceiling Exhaust Fan?

Clean panel：A flat surface coordinates with integrated ceilings.；Plastic housing：The housing is injection molded as one piece.；Gravity damper：The illustrated backdraft damper is located at the outlet.

What should I check before selecting the S Series Integrated Ceiling Exhaust Fan?

Please confirm: Ceiling or window type, mounting opening, duct connection diameter and exhaust route.
