Two intake paths
Two inlet ports connect to separate ducts.
Building Ventilation / DPT
Dual-Inlet Split Exhaust Fan
Two inlets. One exhaust path.
Connects two air intakes to one exhaust unit, reducing the installation space needed for separate fans.
Two intake pathsCompact layoutCoated metal housing
PRODUCT FEATURES
Details designed around use.
Compact layout
Central exhaust makes duct routing easier.
Coated metal housing
The housing and ports suit duct installation.
DESIGN & OPERATION
From operating principles to everyday use.
Two inlets, one exhaust
Two intake points connect to one outlet. As branch lengths and resistance may differ, check the required airflow in each branch separately.
Direct drive within the ceiling

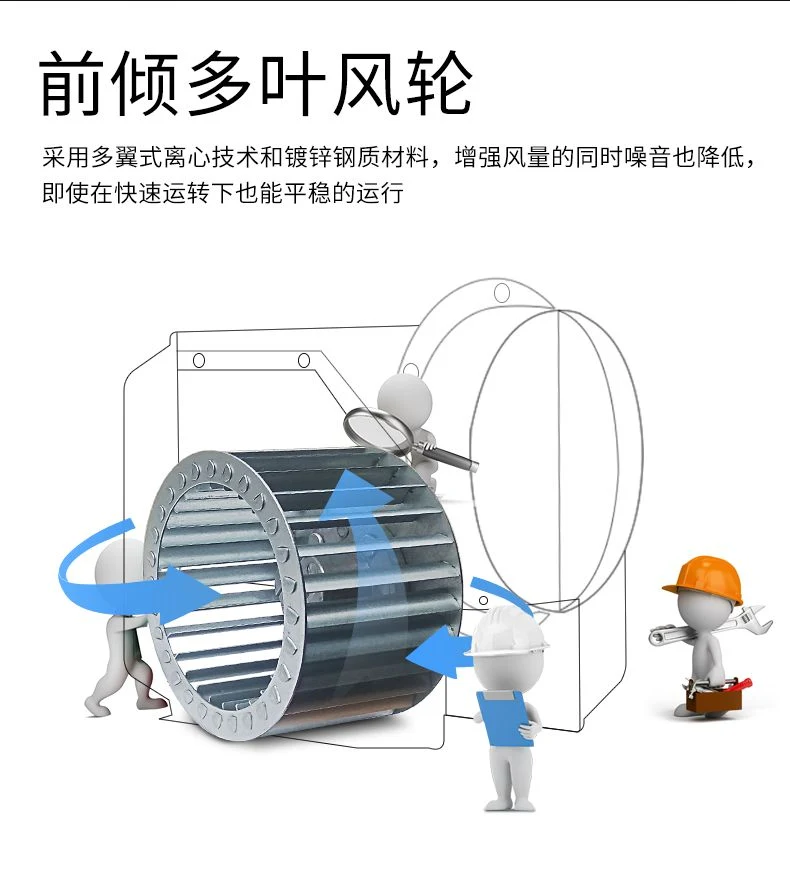

The documentation describes a centrifugal impeller, direct-drive motor and metal housing. Plan inlet and outlet ducts, mounting points and maintenance access together.
Routine inspection
The coated metal housing supports external cleaning. Check dust buildup, loose connections and unusual vibration. Disconnect power before opening the unit.
INSIDE THE PRODUCT
Explore the construction and functions.
Enlarge image ⊕
Enlarge image ⊕
Enlarge image ⊕SPECIFICATIONS
Specifications at a glance.
| Product series | DPT |
|---|---|
| Product category | Split Duct Fans |
| Construction feature | Two intake paths |

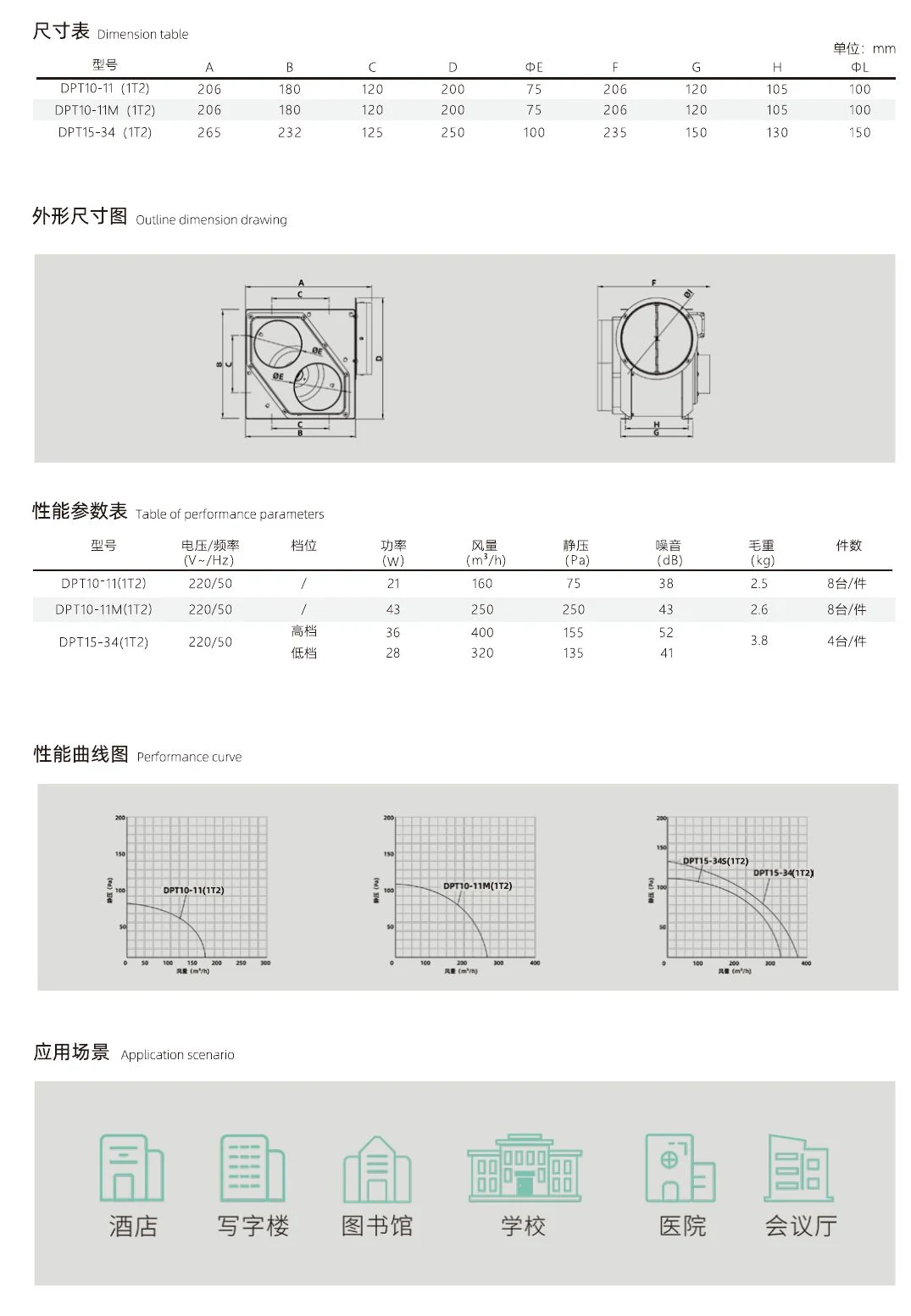

| Selection information | See the dimension and performance charts on this page |
Specifications follow the corresponding product documents. Do not combine figures from different models. Confirm operating conditions and the supplied configuration.
Enlarge image ⊕
APPLICATION & SELECTION
Move air where it is needed.
Cabinet fans, duct fans and filter boxes work together for central ventilation, zoned exhaust and duct filtration.
Before selecting a product
Required airflow and static pressure, duct diameter and resistance, installation position and power supply.
Application illustration, not a record of a completed project.
Discuss your projectPRODUCT QUESTIONS
Questions about this product
What are the key features of the Dual-Inlet Split Exhaust Fan?
Two intake paths：Two inlet ports connect to separate ducts.；Compact layout：Central exhaust makes duct routing easier.；Coated metal housing：The housing and ports suit duct installation.
What should I check before selecting the Dual-Inlet Split Exhaust Fan?
Please confirm: Required airflow and static pressure, duct diameter and resistance, installation position and power supply.
